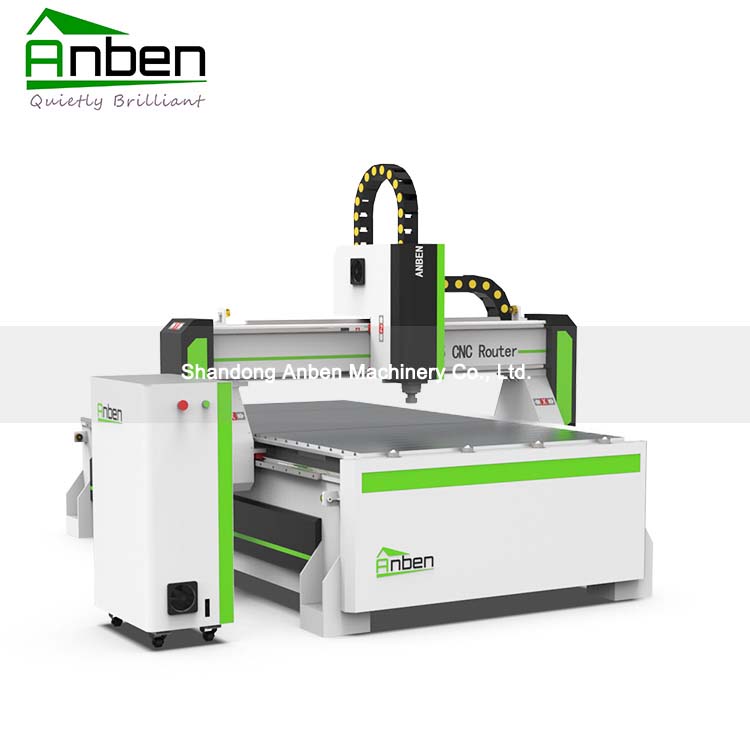

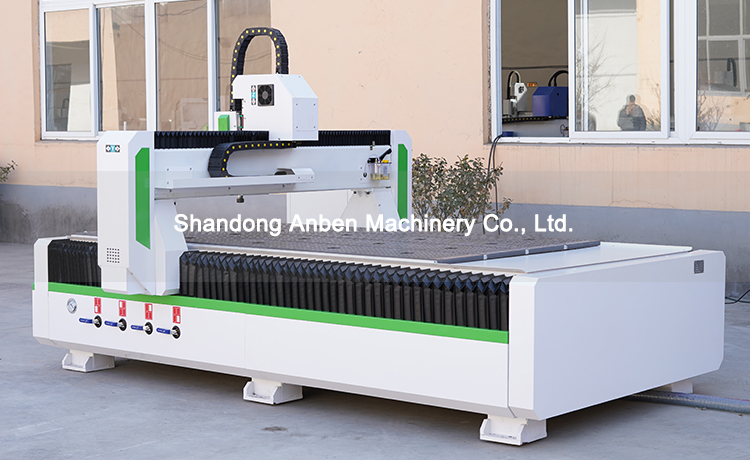

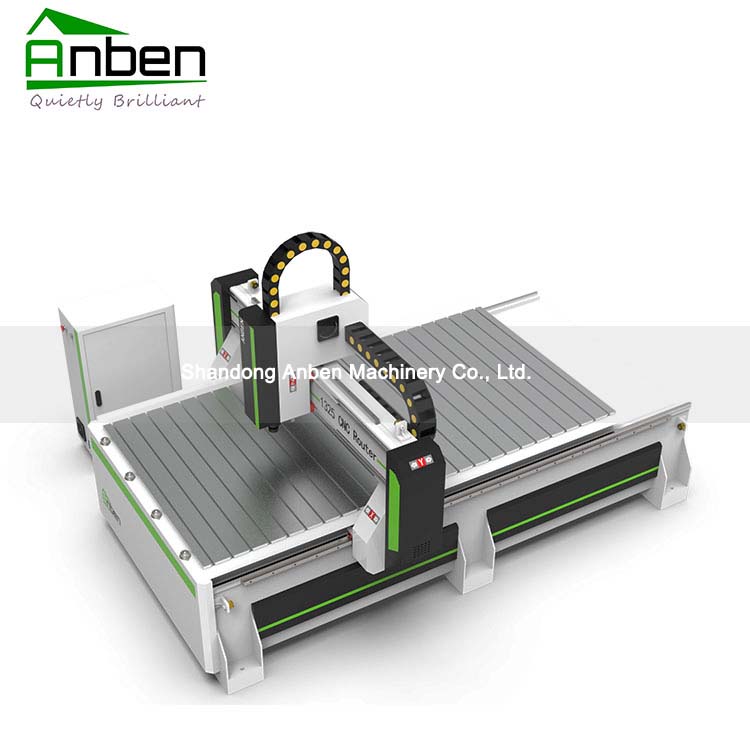

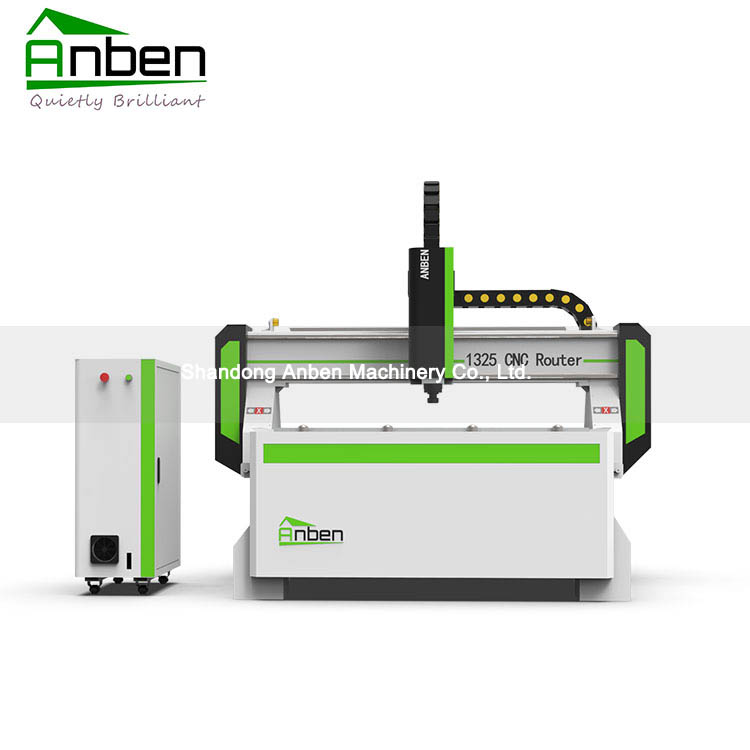

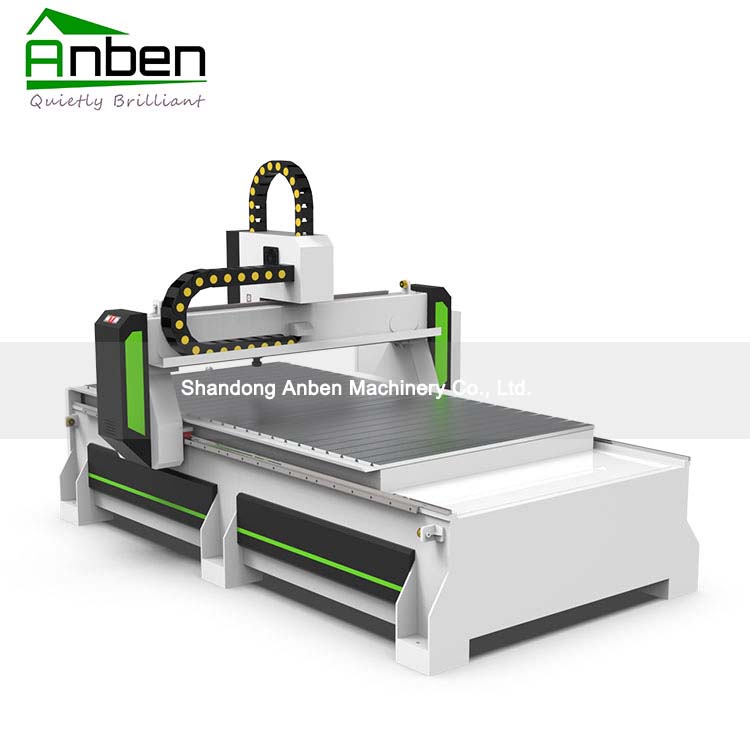

Application of cnc router wood :
1.Mould: wood,wax, wood, gypsum,foams,wax 1325 cnc router wood working machine wood machine
2. Furniture: wooden doors, cabinets, plate, office and wood furniture, tables, chair, doors and windows.
3. The wood products: voice box, game cabinets, computer tables, sewing machines table,instruments.
4.Plate processing: insulation part, plastic chemical components, PCB, inner body of car, bowling tracks, stairs, anti bate board, epoxy resin, ABS, PP, PE and other carbon mixed compounds.
5. Decorate industry: Acrylic, PVC, MDF, artificial stone, organic glass, plastic and soft metals such as copper engraving and milling process.
X,Y,Z Working Area
1300*2500*200mm
Color
White and Green ( Can Be Customized)
Working Voltage
380V/3PH/50Hz(Can Be Customized to Meet Different Country’s Requirement)
Control System
DSP A11
Spindle
6KW HQD Spindle
Spindle Speed
0-24000RPM
Inverter
7.5 KW Fuling
Drive Motors
FL118 Motor
Frame
New Type Heavy Duty Body
Lubrication
Manual Lubrication System
Gantry structure
Steel Gantry
Spray/ Flume
Automatic Oil Mist Cooling
X, Y Structure
HIWIN 20# Guide Rails
Z Structure
TBI Ball Screw Ball Screw Transmission
Tool Sensor
Semi-Automatic Tool Sensor
