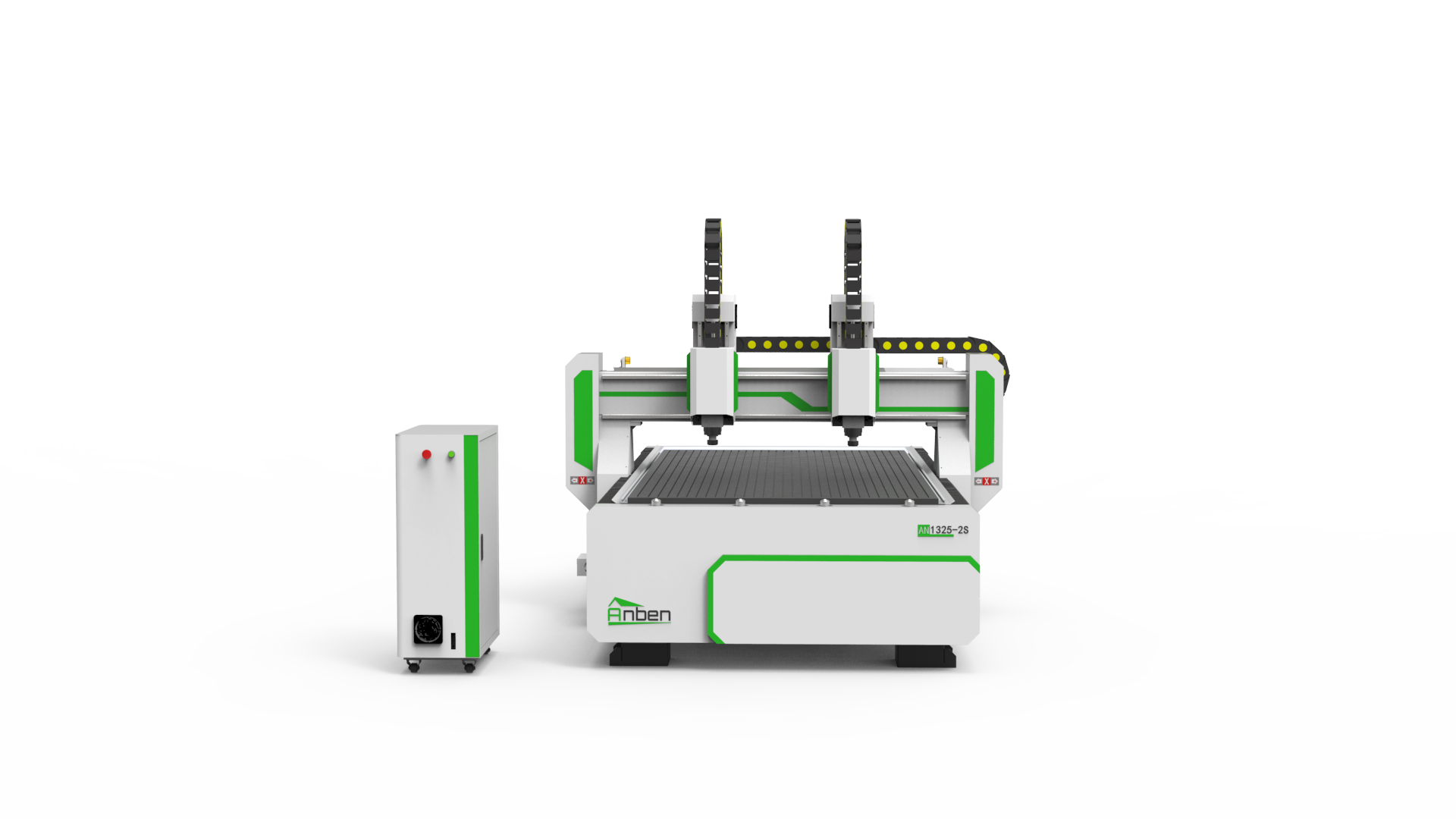

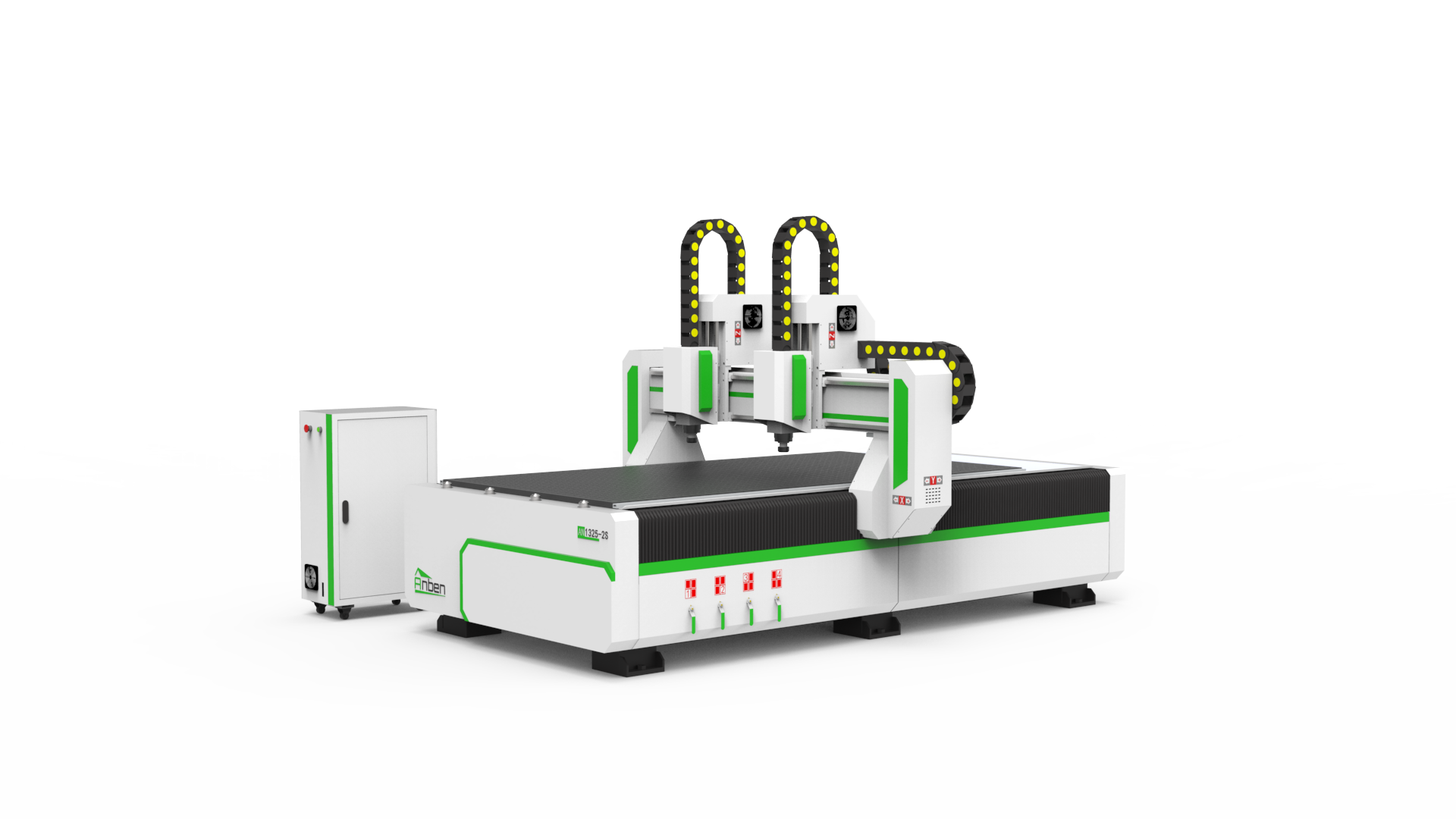

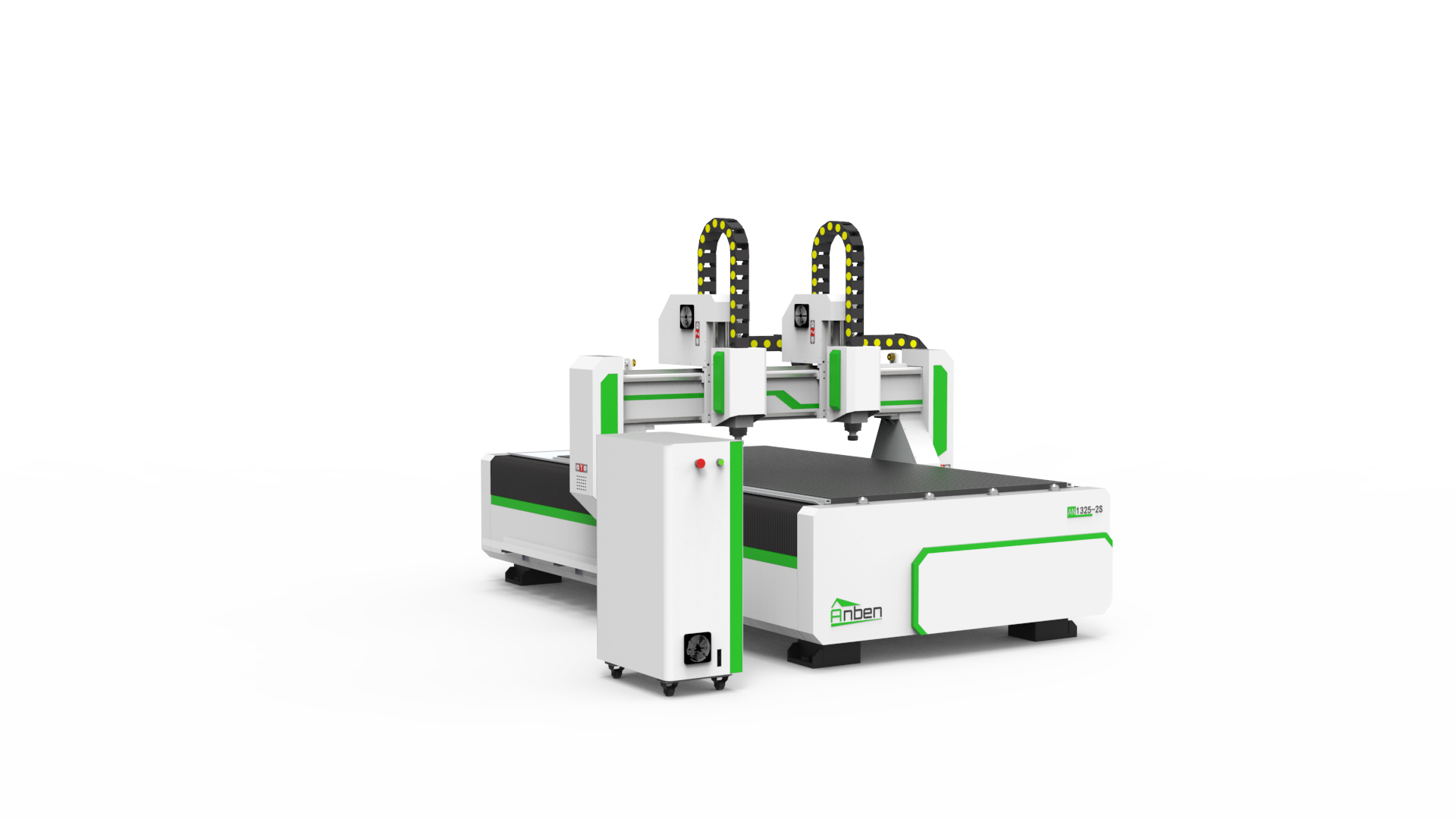

AN1325 Cnc Router Two independent Spindle

AN1325 Cnc Router Two independent Spindle
Two spindles CNC router. The two spindles have own motor control,can complete processing independently, so more flexible processing. Also the two spindles can work at the same time, which more efficiency.
WhatsApp: +86-18253185838
Phone: +86 0086-18253185838
Email: info@anbencnc.com
Send Inquiry
Product Introduction
Two spindles CNC router. The two spindles have own motor control,can complete processing independently, so more flexible processing. Also the two spindles can work at the same time, which more efficiency.
Features
  • Equipped with two spindles, which can work independently to promote the working efficiency

  • X,Y axis have dust cover to prevent the dust which ensure the machine have a longer service life.

  • T-slot and vacuum working table, easy and fast to fix the material

  • Feed rollers on the front of machine,easy to load the material

Specification

No..

Iterm

Parameter

1

Working area

1300*2500mm

2

Z axis travelling

200mm,300mm,400mm

3

Spindle x 2

Air/Water cooling spindle x 2

4

Control system

DSP A11 control system

5

Motors

Stepper motor/ Servo motor

6

Machine frame

Heavy duty weld steel frame,gantry moving type.

7

Working table

T-slot and vacuum working table

8

Linear guide

Taiwan Hiwin/PMI linear square guide

9

Ballscrew

Taiwan TBI ballscrew

10

Rack and gear

Helical rack

11

Machine frame

Heavy duty weld steel frame,gantry moving type.

12

Tool sensor

Tool sensor calibration

13

Command Language

G code

14

Voltage

380V/220V,3PH/1PH,50HZ/60HZ

15

CE certification

CE certification

Material
  • Wood: Composite wood (MDF, plywood, particle board),Solid wood , softwood,

  • Plastics: ABS, PVC, PET, polycarbonate, acrylic, polypropylene, HDPE.

  • Metals: Aluminum, copper, brass, honeycomb aluminum.

  • Foam: Polyurethane, polystyrene, EVA, sign foam, precision foam boards.

  • Stone: Granite, marble, sandstone, ceramic tiles, artificial stone, jade.

  • Other Materials: Solid surface materials, laminates, PCB, composites, fiberglass, rubber, modeling clay.

Applications
  • Wood & Stone: Furniture, cabinetry, decorative panels, tombstones, countertops, moldings.

  • Metal & Plastics: Prototyping, signage, industrial components, enclosures, machining of soft metals.

  • Foam & Composites: Packaging, foam models, insulation, prototypes, props.

  • Artistic & Educational: Sculptures, nameplates, school projects, hobbyists designs.

// Optional parts//

  • 1
  • 2
  • 3
  • 4
  • 5
  • 6
  • 7
  • 8

// Contact Us //

We are available 24/7 by e-mail, whatsapp or by phone.

You can also use our quick contact form to ask a question about our products.

Submit

//Customer Reviews//

“Our cabinet factory processes dozens of different types of wood every day. Anben’s engineers customized a horizontal processing solution for us, which makes it far more stable when processing long strips of wood than the vertical models we used before.”

Jane Doe

Jane Doe

Timber Industry

"After comparing several brands, we chose Anben, not only because of the equipment's capabilities, but also because they truly understand customer needs. This machine has become the 'precision expert' in our workshop.”

John Smith

John Smith

Stone Industry

"We use the AN series to process aluminum profiles for building curtain walls, and what I'm most satisfied with is Anben's after-sales service—from installation training to technical support, their response is extremely fast. For the efficiency-driven Middle Eastern market, Anben is our most reliable partner."

Sarah Wilson

Sarah Wilson

Metals Industry

"Before purchasing Anben's V-ALU series, we consulted several suppliers. Anben's sales engineers didn't simply offer quotes; instead, they spent two weeks thoroughly understanding our production processes and recommending products that matched our thin-walled aluminum part processing needs. This professional, patient, and unhurried service attitude is extremely rare in the German market."

Michael Brown

Michael Brown

Parts Processing Industry

"The machine was shipped from China to Perth, Australia, crossing half the globe. I was shocked when I unpacked the wooden crate—all the parts were securely fastened. For cross-border procurement, nothing is more reassuring than 'delivery intact.'"

Emily Davis

Emily Davis

Composite Materials

“In Italy, design is life. In the past, we were always limited by our equipment when making spiral staircase handrails and irregularly shaped furniture legs. The Anben AN series perfectly solves this problem.”

Robert Johnson

Robert Johnson

Furniture Industry

// FAQ //

Q1: How do I know which machine is right for me?

A: Hello! Several key factors need to be considered when selecting a machine:

Material: What materials do you mainly process? (Aluminum/Wood/Stone/Plastic/Composite materials?)

Dimensions: What are the maximum length, width, and height of the workpiece?

Process: Do you mainly do cutting, engraving, drilling, or milling?

Precision: What is the required machining precision?

Output: What is your approximate daily/monthly processing volume?

Please provide the above information, and our engineers will provide you with a free selection plan, recommending the most suitable model and offering configuration suggestions. You can also send us samples, and we will conduct free cutting tests and record videos for your reference.

Q2: I have no experience in import and export, how can I buy machines from China?

A: Hello! Many customers have this concern when importing equipment for the first time. We offer a one-stop procurement service:

Contract Signing: Bilingual contracts in Chinese and English, with clear terms.

Payment Methods: We support T/T, Letter of Credit (L/C), and Alibaba Trade Assurance.

Export Customs Clearance: We handle export customs declaration in China and provide all necessary documents (invoice, packing list, certificate of origin, fumigation certificate, etc.).

Logistics Assistance: We recommend reliable freight forwarders and assist with booking.

Destination Port Customs Clearance: We provide guidance documents for destination port customs clearance.

Installation Guidance: Remote or on-site assistance to ensure smooth machine operation.

You only need to provide the delivery address, and we'll handle the rest.

Q3: How should the machine be cleaned after processing?

A: Hello! Daily cleaning before leaving get off work directly impacts machine lifespan:

Power off: Safety first; always turn off the main power before cleaning.

Remove chips: Use an air gun or industrial vacuum cleaner to remove chips from the worktable, guide rails, and around the lead screw (Note: Do not use excessive air gun pressure to prevent chips from flying into gaps).

Wipe surfaces: Use a soft cotton cloth dampened with a small amount of detergent to wipe the machine tool casing and worktable surface.

Spray rust-preventive oil: If the workshop has high humidity or the machine will not be used for a long time, spray a thin layer of rust-preventive oil on the worktable and unpainted metal surfaces.

Zeroing and resetting: Stop the spindle in a safe position and reset the worktable to zero.

A clean and tidy machine reduces the failure rate by at least half.

Q4: If the machine malfunctions, how do I contact your after-sales service?

A: Hello! We offer multiple contact channels and provide 24/7 support:

WhatsApp/WeChat: +86-18253185838 (After-sales hotline, response within 2 hours)

Email: info@anbencnc.com (Response within 24 hours)

Emergency Hotline: +86 18253185838 (24-hour emergency fault reporting) No matter which country you are in, we ensure a prompt response. We suggest you post your after-sales contact information next to the machine for easy reference by your operator.
