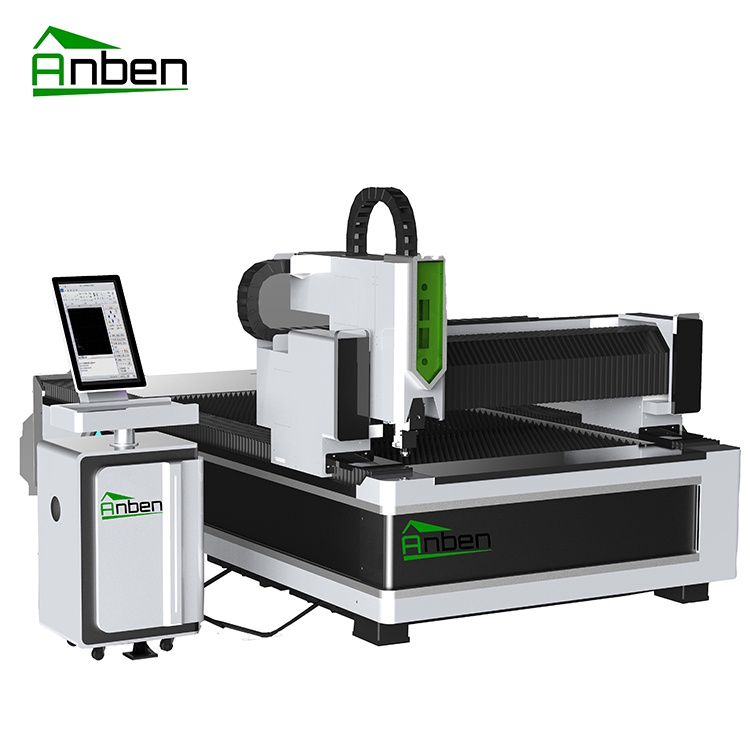

Sheet metal Fiber laser cutting machine

Sheet metal Fiber laser cutting machine

The laser metal cutting machine is widely used to cut various metal sheet products in the advertising, craft, decoration, and other industries. It is suitable for cutting carbon steel, stainless steel, aluminum, brass, and copper parts, signs, crafts, logos, letters, etc.
WhatsApp: +86-18253185838
Phone: +86 0086-18253185838
Email: info@anbencnc.com
Send Inquiry
Product Introduction
The laser metal cutting machine is widely used to cut various metal sheet products in the advertising, craft, decoration, and other industries. It is suitable for cutting carbon steel, stainless steel, aluminum, brass, and copper parts, signs, crafts, logos, letters, etc.
Features
  • High-Precision Fiber Laser Source
    Equipped with a high-performance fiber laser source for fast, precise, and stable metal cutting.
  • High-Speed Cutting Performance
    High acceleration and cutting speed help improve production efficiency and reduce processing time.
  • Precision Linear Guide System
    High-quality linear guides and transmission components ensure smooth movement and excellent positioning accuracy.
  • Automatic Focusing Laser Head
    The automatic focusing system adjusts the focal position according to material thickness, providing consistent cutting quality.


Specification


Working Area

3000x1500mm/ 4000x1500mm

Machine structure

Stable & strong welded bed with high temperature annealing

Beam

Aviation grade tensile cast aluminum beam

Fiber Laser Power

1500W/2000w/3000w/6000W

Fiber Laser Source

China Max/Raycus

Control System

FS CUT/Raytools/Weihong

Cutting Head

Raytools

Motor and Drivers

Servo motor

Liner Guider System

Taiwan Hiwin

Reducer

Japan Shimpo

Water Chiller

China

Lubrication system

Automatic

Computer

Industry computer

Working Voltage

380v, 3phase, 50hz

Table Load Bearing

1500KG

Moving Speed

120m/min

Position Accuracy

±0.03mm

Repositioning accuracy

±0.02mm

Gross weight

2000kG


Material

Mild Steel / Carbon Steel,Stainless Steel,Galvanized Steel,Alloy Steel.

Aluminum,Aluminum Alloy,Brass,Copper.

Various Metal Sheets and Plates

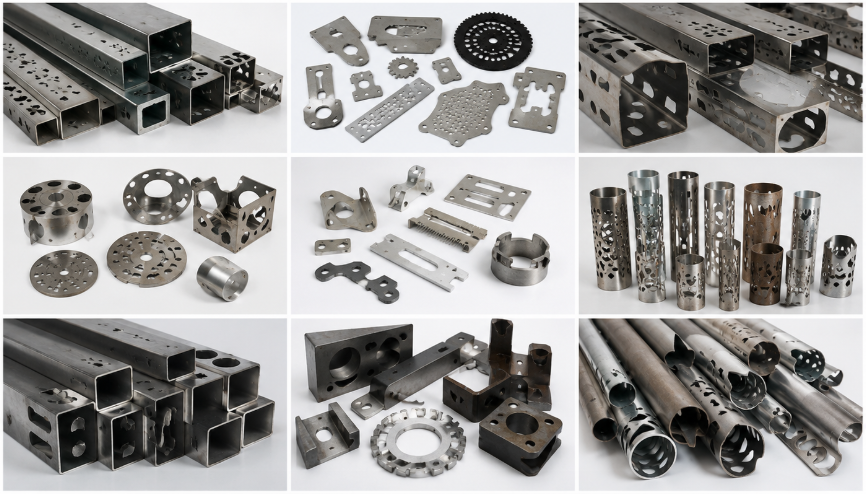

Applications

1787885938951796370259075072.png@!w400



// Optional parts//

  • 1
  • 2
  • 3
  • 4
  • 5
  • 6
  • 7
  • 8

// Contact Us //

We are available 24/7 by e-mail, whatsapp or by phone.

You can also use our quick contact form to ask a question about our products.

Submit

//Customer Reviews//

“Our cabinet factory processes dozens of different types of wood every day. Anben’s engineers customized a horizontal processing solution for us, which makes it far more stable when processing long strips of wood than the vertical models we used before.”

Jane Doe

Jane Doe

Timber Industry

"After comparing several brands, we chose Anben, not only because of the equipment's capabilities, but also because they truly understand customer needs. This machine has become the 'precision expert' in our workshop.”

John Smith

John Smith

Stone Industry

"We use the AN series to process aluminum profiles for building curtain walls, and what I'm most satisfied with is Anben's after-sales service—from installation training to technical support, their response is extremely fast. For the efficiency-driven Middle Eastern market, Anben is our most reliable partner."

Sarah Wilson

Sarah Wilson

Metals Industry

"Before purchasing Anben's V-ALU series, we consulted several suppliers. Anben's sales engineers didn't simply offer quotes; instead, they spent two weeks thoroughly understanding our production processes and recommending products that matched our thin-walled aluminum part processing needs. This professional, patient, and unhurried service attitude is extremely rare in the German market."

Michael Brown

Michael Brown

Parts Processing Industry

"The machine was shipped from China to Perth, Australia, crossing half the globe. I was shocked when I unpacked the wooden crate—all the parts were securely fastened. For cross-border procurement, nothing is more reassuring than 'delivery intact.'"

Emily Davis

Emily Davis

Composite Materials

“In Italy, design is life. In the past, we were always limited by our equipment when making spiral staircase handrails and irregularly shaped furniture legs. The Anben AN series perfectly solves this problem.”

Robert Johnson

Robert Johnson

Furniture Industry

// FAQ //

Q1: How do I know which machine is right for me?

A: Hello! Several key factors need to be considered when selecting a machine:

Material: What materials do you mainly process? (Aluminum/Wood/Stone/Plastic/Composite materials?)

Dimensions: What are the maximum length, width, and height of the workpiece?

Process: Do you mainly do cutting, engraving, drilling, or milling?

Precision: What is the required machining precision?

Output: What is your approximate daily/monthly processing volume?

Please provide the above information, and our engineers will provide you with a free selection plan, recommending the most suitable model and offering configuration suggestions. You can also send us samples, and we will conduct free cutting tests and record videos for your reference.

Q2: I have no experience in import and export, how can I buy machines from China?

A: Hello! Many customers have this concern when importing equipment for the first time. We offer a one-stop procurement service:

Contract Signing: Bilingual contracts in Chinese and English, with clear terms.

Payment Methods: We support T/T, Letter of Credit (L/C), and Alibaba Trade Assurance.

Export Customs Clearance: We handle export customs declaration in China and provide all necessary documents (invoice, packing list, certificate of origin, fumigation certificate, etc.).

Logistics Assistance: We recommend reliable freight forwarders and assist with booking.

Destination Port Customs Clearance: We provide guidance documents for destination port customs clearance.

Installation Guidance: Remote or on-site assistance to ensure smooth machine operation.

You only need to provide the delivery address, and we'll handle the rest.

Q3: How should the machine be cleaned after processing?

A: Hello! Daily cleaning before leaving get off work directly impacts machine lifespan:

Power off: Safety first; always turn off the main power before cleaning.

Remove chips: Use an air gun or industrial vacuum cleaner to remove chips from the worktable, guide rails, and around the lead screw (Note: Do not use excessive air gun pressure to prevent chips from flying into gaps).

Wipe surfaces: Use a soft cotton cloth dampened with a small amount of detergent to wipe the machine tool casing and worktable surface.

Spray rust-preventive oil: If the workshop has high humidity or the machine will not be used for a long time, spray a thin layer of rust-preventive oil on the worktable and unpainted metal surfaces.

Zeroing and resetting: Stop the spindle in a safe position and reset the worktable to zero.

A clean and tidy machine reduces the failure rate by at least half.

Q4: If the machine malfunctions, how do I contact your after-sales service?

A: Hello! We offer multiple contact channels and provide 24/7 support:

WhatsApp/WeChat: +86-18253185838 (After-sales hotline, response within 2 hours)

Email: info@anbencnc.com (Response within 24 hours)

Emergency Hotline: +86 18253185838 (24-hour emergency fault reporting) No matter which country you are in, we ensure a prompt response. We suggest you post your after-sales contact information next to the machine for easy reference by your operator.
